The Spine

Liverpool, UK

AHR-Office-TheSpine-Architecture-Exterior4-Liverpool
AHR-Office-TheSpine-Architecture-Interior2-Liverpool
AHR-Office-TheSpine-Architecture-Interior7-Liverpool
AHR-Office-TheSpine-Architecture-Interior1-Liverpool
AHR-Office-TheSpine-Architecture-Interior9-Liverpool
AHR-Office-TheSpine-Architecture-Interior14-Liverpool
AHR-Office-TheSpine-Architecture-Interior20-Liverpool
AHR-Office-TheSpine-Architecture-Exterior2-Liverpool
AHR-Office-TheSpine-Architecture-Interior21-Liverpool
AHR-Office-TheSpine-Architecture-Interior8-Liverpool
AHR-Office-TheSpine-Architecture-Interior18-Liverpool
AHR-Office-TheSpine-Architecture-Interior16-Liverpool

overview

One of the healthiest buildings in the World

In the heart of Liverpool’s Knowledge Quarter, The Spine is the northern home for the Royal College of Physicians (RCP).

Designed with a philosophy that people will feel healthier when they walk out of the building than when they walk in, The Spine is one of the few certified WELL Platinum buildings in the UK, with the shell and core and RCP fit out both achieving WELL Platinum Level.

We worked together with RCP and Liverpool City Council in creating the transformational office, which will attract future leaders in science, health, technology, culture and education as part of one of the largest healthcare campuses in Europe.

AHR-Office-TheSpine-Architecture-Interior12-Liverpool

Project Aims

Benchmark for future biophilic design

RCP wanted to create a thriving workspace that would attract and retain a highly-skilled workforce, whilst being a leading example of a healthy workplace.

Our architecture and interior design teams worked together to create the building shell and the RCP fit out, using the health-based and sustainability standards of WELL and BREEAM as a design approach.

First, an investigation was conducted as to how RCP functioned. These results helped to inform which aspects of the biophilic design would have a positive impact on RCP’s health and wellbeing aspirations.

The health and wellbeing of people using the building will be measured and compared to their health and wellbeing before the build and the resulting data will provide a benchmark for future biophilic design, not only in the workplace but across all sectors.

design concept

Narrative of the human body

The concept and philosophy behind the design of The Spine draw on the narrative of the human body and its abstract representation through architecture, biophilia and salutogenics.

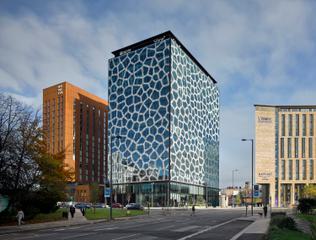

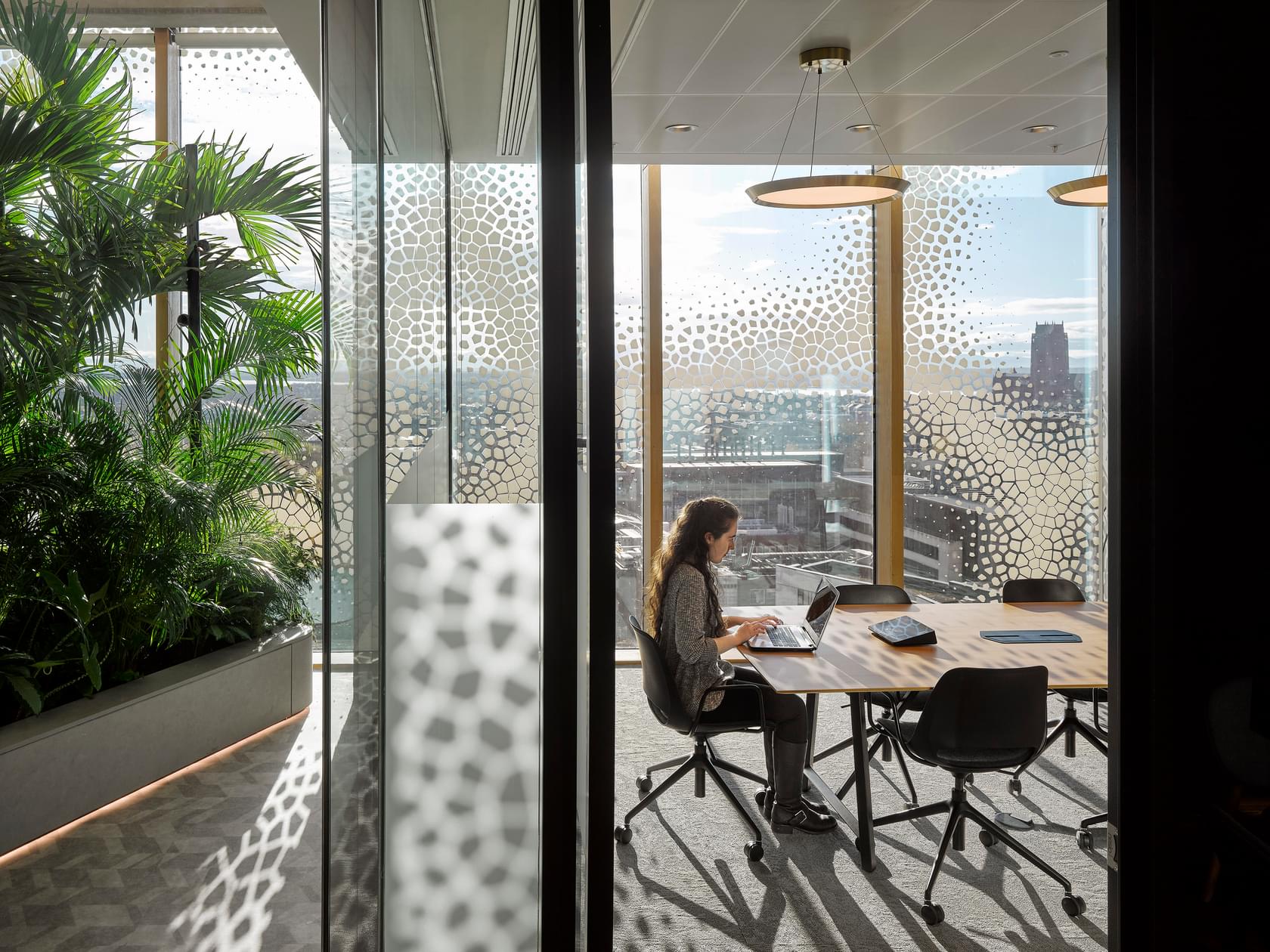

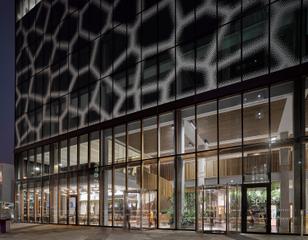

The distinctive Voronoi pattern on the facade takes influence from the human skin, with 23 million individual polygons applied in a frit pattern, creating internal shadows reminiscent of a forest canopy. The mathematical pattern is found in biology, medicine and epidemiology, and is a symbolic reference to nature.

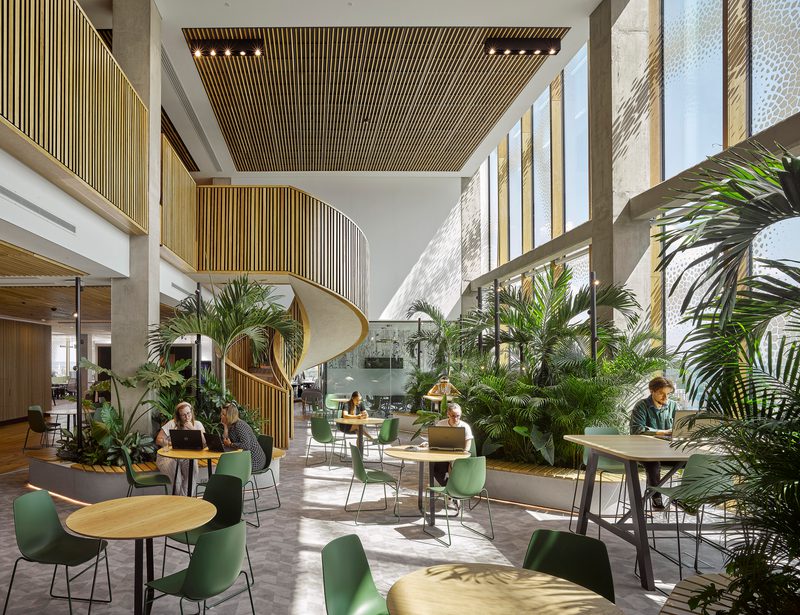

Inside the building, rather than an atrium found in a typical commercial building, The Spine’s series of double-height sky gardens act as a ‘vertical village’, representing the ‘lungs’ of the building.

These improve visual and physical connectivity between floors with helical stairs and contain a rich mix of plants and trees which help increase oxygen levels, whilst also promoting the building’s biophilic and salutogenic properties.

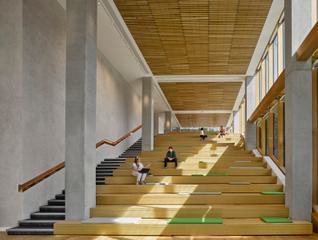

The Spine takes its name from its striking geometric staircase, which offers panoramic views across Liverpool, as far as Snowdonia and the Pennines, encouraging people to use the stairs.

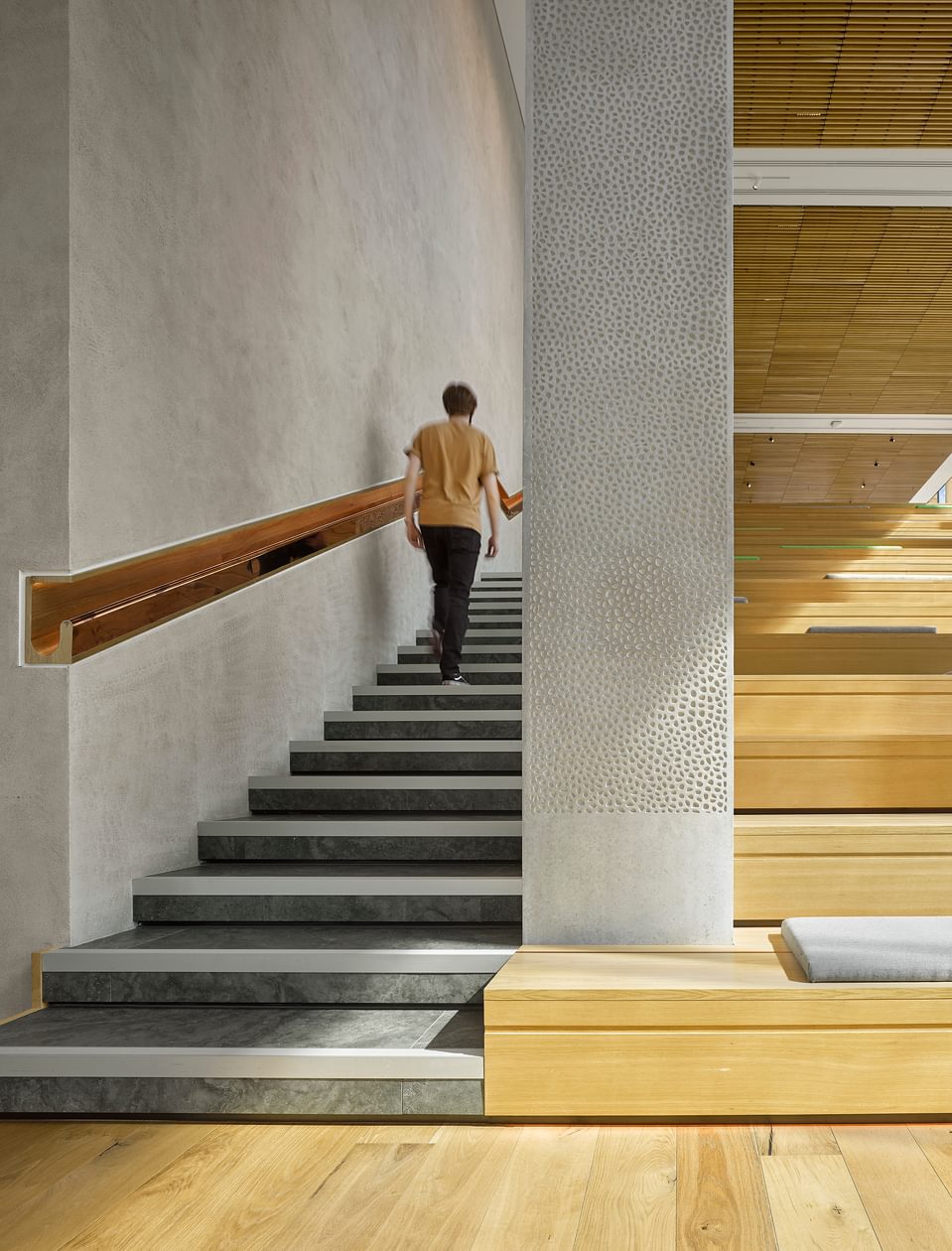

Exposed concrete columns are moulded to reflect the trabecular system within human bones, which is the strongest part of a bone for reflecting mechanical stress.

AHR-Office-TheSpine-Architecture-Interior4-Liverpool
AHR-Office-TheSpine-Architecture-Interior23-Liverpool
AHR-Office-TheSpine-Architecture-Interior19-Liverpool
AHR-Office-TheSpine-Architecture-Interior22-Liverpool
AHR-Office-TheSpine-Architecture-Interior5-Liverpool
AHR-Office-TheSpine-Drawing1-Liverpool

biophilic design

Connection to nature

The extensive planting has been directly connected to spaces where members of staff are located and have been selected for not only their visual appeal in the building but also their air-purifying properties. The absence of an automated irrigation system for the plants encourages staff to connect with the plant life and have a closer engagement with their natural internal environment.

When combined with the salutogenic planting, highly specified air supply and filtration systems and routine air quality monitoring create a significant impact on air quality, improving people’s health and cognitive performance by 10-20%.

The shadows created by the facade move across the space throughout the day, creating a dynamic, changing environment. From the exposure to natural light, and the shifting seasons, people have an increased awareness of natural processes, helping them to synchronise with their circadian rhythms and remain connected to their natural sleep patterns.

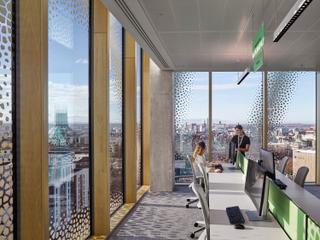

Individual workstations are no more than 7.5m away from a window, to capitalise on the unparalleled levels of natural light. Each workstation also has access to a personal dashboard, allowing people to control the lighting and temperature in their immediate vicinity. Both elements connect occupants to their immediate surroundings and reduce stress, boredom and fatigue.

An ‘if you can touch it, it is real’ approach was taken when selecting natural materials and finishes at all touchpoints in the building, which works harmoniously with the colour palette. Extensive use of oak provides a nonvisual connection with nature and there is minimal long-term maintenance, as surface patterns will age gracefully over time.

The colour scheme works with the biophilic-centred interior design, which echoes that of the development of a tree through the rise of the building: earthier colours for the lower floors merging into greener, leafier colours and patterns further up and finally a palette of blues on the upper floors. Integrated seating lets people sit under the foliage as if under a woodland canopy.

Social value

Supporting the local economy

Participation by the whole team in a wide range of community outreach initiatives has assured a solid legacy, the construction team and its supply chain partners have achieved 75% local return on cost, a monetary value of £28.8m back into the local economy.

29

Apprentices
= 539 Apprentice weeks

17

NVQs
= 345 NVQ weeks

26

Work Experience

5

Under/graduates
= 153 Under/graduate weeks

£2.09

LM3 return on investment
per £1 spent

90

Total apprentices on Paddington Village

In parallel with our leading role in healthcare, the building itself is a beacon of excellence in its field.”

Sir Andrew Goddard

Former RCP President

interior design

Exceptional functionality as a modern office

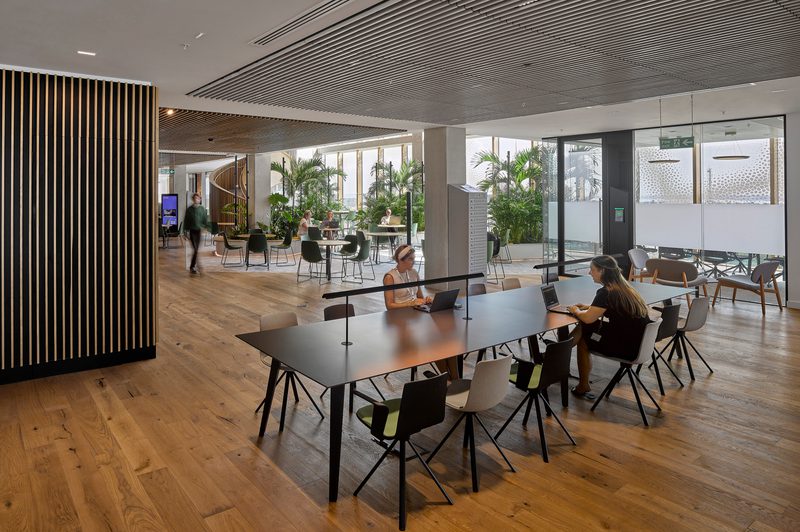

The adaptable office concept consists of a series of zones, each performing a different task, which can be mixed and matched. Each zone houses both loud and quiet, formal and informal areas, ensuring that individuals’ feel that their personal needs are being catered for.

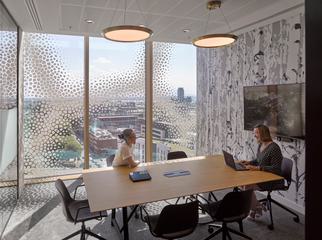

Meeting spaces are designed to encourage cross-collaboration, reduce ‘static’ working and foster a sense of community. Private work pods and enclosed meeting booths offer places to withdraw from the main flow of activity and provide sanctuaries of contemplation.

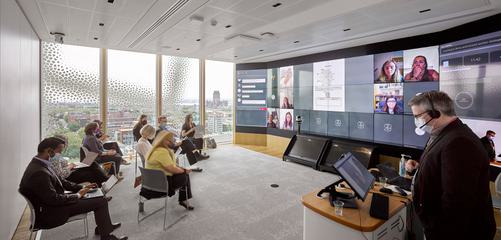

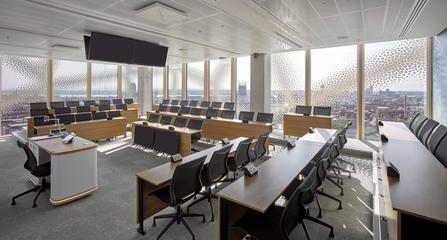

The medical simulation facilities are designed specifically to host the PACES examinations and medical assessments. All the education spaces consider both physical and virtual learning.

The ground floor is accessible to the public with a café and exhibition area which will be used to educate the public on various health issues, as well as hosting more specialist events.

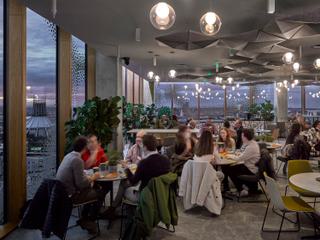

The two dining areas encourage workers to gather in more sociable groups when eating, instilling a sense of community in the workplace thus improving mental health.

Design and innovation

Hear how the building makes you feel better

Watch our video to hear directly from the team about how this was achieved.

AHR-Office-TheSpine-Architecture-Interior13-Liverpool

We have amazing spaces and surely the best views in Liverpool, the internal features enhance the wellbeing of our staff, visitors and exam candidates. The biophilia improves air quality and provides a natural environment, with patterns in nature to ease the mind and natural products that give a total sense of calm. It’s the most amazing building I have had the pleasure to work in.”

Cathy Hardman

Workplace Manager, The Royal College of Physicians

Sustainability standards

One of the healthiest workspaces

The Spine has been designed according to the international WELL Building Standard and has earned both Platinum level in the WELL Core Certification and Platinum level for the RCP fit out.

The Spine’s WELL Building Standard assessment targeted over 90 points, well above the 80-minimum requirement to achieve WELL Core Platinum and demonstrates a total commitment by the College to health and wellbeing in the design and realisation, which goes above and beyond any accreditation.

AHR worked with Sustainable Design Consultants, Salvedge, and a CBRE WELL Accredited Professional to ensure that the biophilic interventions were considered as high-scoring Innovations by WELL.

The building is the first to achieve BREEAM Outstanding under Refurbishment and fit-out 2014 scheme and WELL Platinum under the version 2 pilot. It will add to the growing body of evidence-based design in the office and workplace sector, to help us better understand the impact that these natural interventions have in our internal environments.


Key information

Project summary

Location

Liverpool, L7 3EA

Client

Liverpool City Council
Royal College of Physicians

Completion

2021

Value

£35m

Environmental

WELL Core Certified Platinum
WELL Fit Out Certified Platinum - RCP fit out
BREEAM Excellent (shell and core)
BREEAM Outstanding (fit out)

Size

202,000 ft2 (gross)

Includes

Collaboration space
Exhibition space
Events space

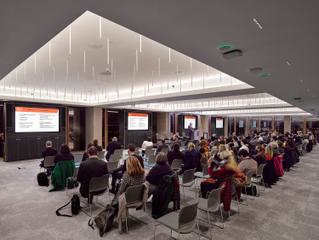

Conference facilities
Education space
Medical simulation space

Awards

BCO Regional Innovation Award 2022 Winner

North West Construction Awards 2021
Winner - Liverpool Sub-Region Project of the Year, Project of the Year, Building Digital Construction Award

Mixology North Awards 2021
Winner - Project of the Year Workplace Interiors category 5 – Over 70,000 ft2
